Inkscape COB series 600*337.5*34mm 3840HZ unmatched value products

1. Product Core Advantages

• Packaging & Display Technology: Adopts Full Flip-Chip COB Technology, which enhances image quality, reduces failures, enables efficient heat dissipation, and ensures superior reliability and durability; features a 16:9 golden display ratio, allowing perfect assembly of HD, 2K, 4K, and even 8K resolution walls with a 600×337.5mm cabinet size for optimal display effects.
• Performance Indicators: Boasts an ultra-high refresh rate of 3840Hz, an ultra-high contrast ratio of 10000:1 (delivering deeper blacks and brighter highlights), a brightness of ≥600 nits, brightness uniformity of ≥98%, a frame rate of 50/60Hz, and 14-bit gray scale.
• Energy Conservation & Protection: Employs a common cathode 3.8+2.8V power supply for energy saving, achieving an average power consumption of 120W/m² and a maximum power consumption (tested at 1000 nits white balance) of ≤300W/m²; holds an IP30 protection rating and is energy-optimized, sustainable, and eco-friendly.
• Integration & Structure: Features high integration with a 3-in-1 driver (power, receiver, and HUB); adopts an ultra-reliable monolithic architecture, including 8 COB modules and an integrated driver board; uses a die-cast aluminum cabinet with a unibody design that significantly reduces hardware connection points, minimizing failure rates and ensuring excellent operational stability and longevity.

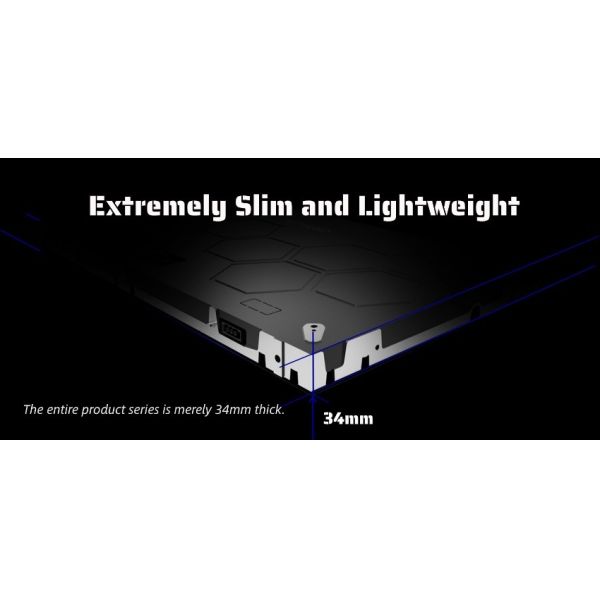

• Installation & Portability: Supports multi-point position and rapid installation, with rear access installation—multi-point magnetic arrays secure module mounting, and 24 alignment guides plus 4 reinforced locks between cabinets ensure flawless flatness and quick deployment (steps include fastening and tightening left-right and upper-lower cabinets); the entire product series is extremely slim (only 34mm thick) and lightweight.

2. Application Scenarios

• Commercial Display
• Digital Exhibition
• Command Center
• Government Agency
• Meeting Room
• Smart Campus
